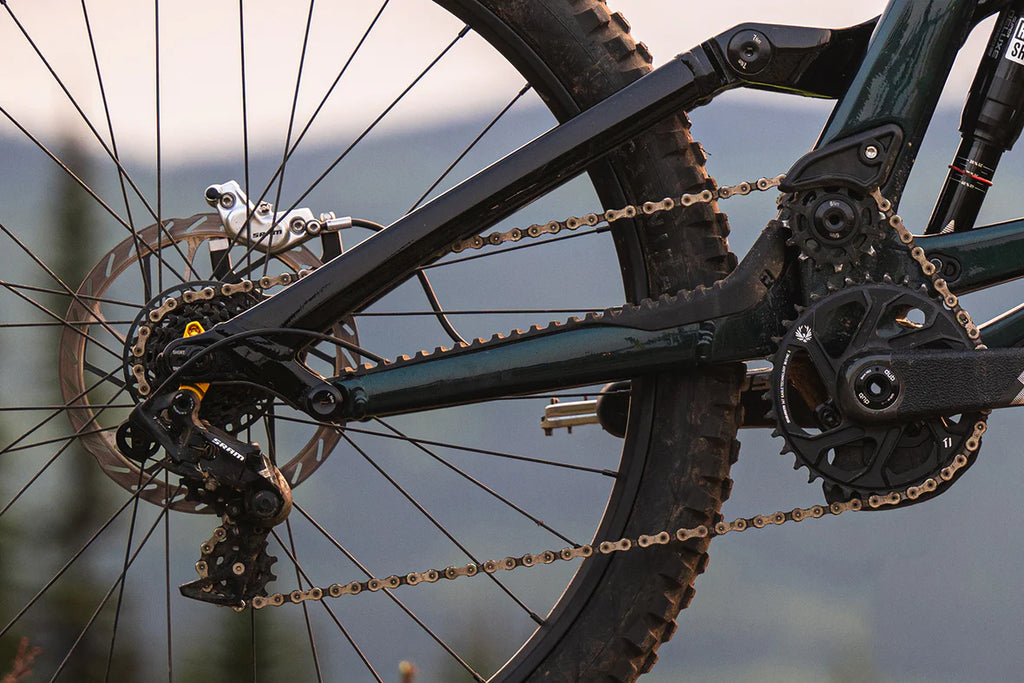

Ruckus Management
Integrated chain guide prevents unwanted chain drops in rough conditions and custom chainstay and seat stay protection keeps the bike quiet so you can focus on what's in front of you instead of underneath.

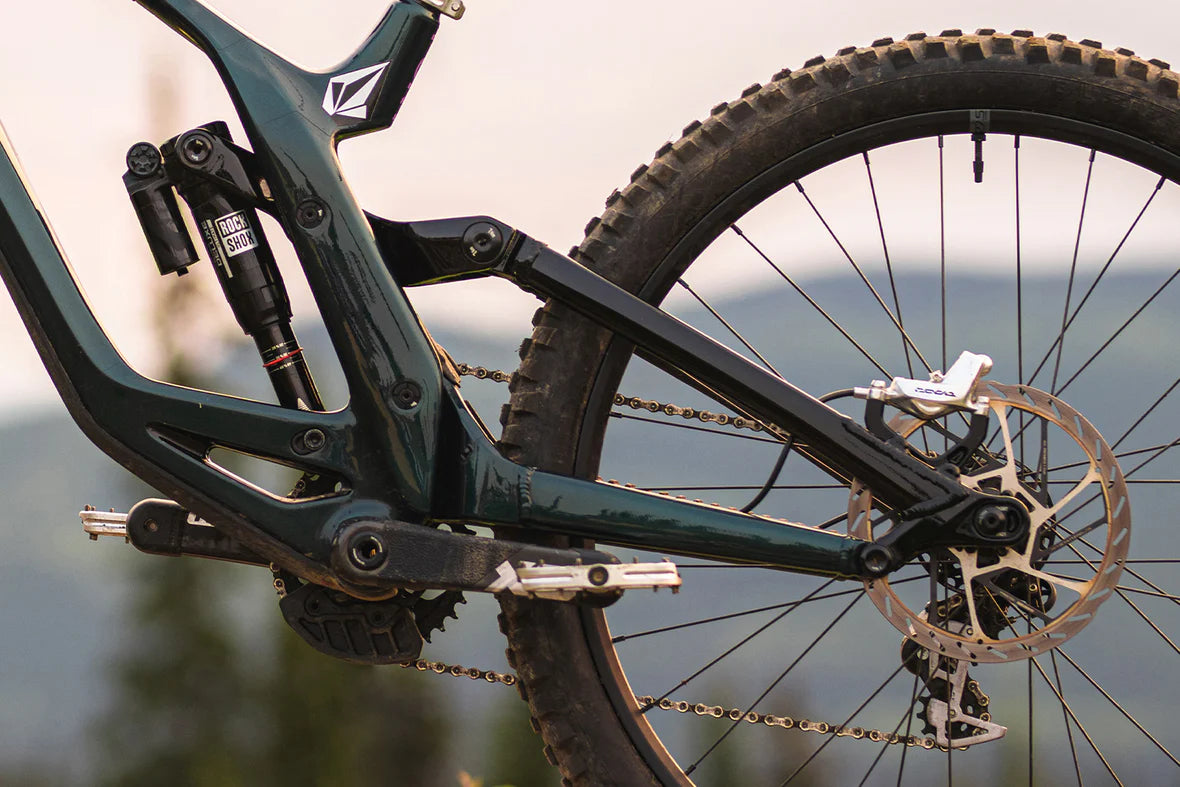

Maximum Tunability
Three separate adjustments all with the flip of a chip. Pick and choose your wheel size, suspension progression, or rear center length for how you want the bike to ride. Onboard adjustments are a key rider benefits that let them fine tune the bike’s ride for any trail.

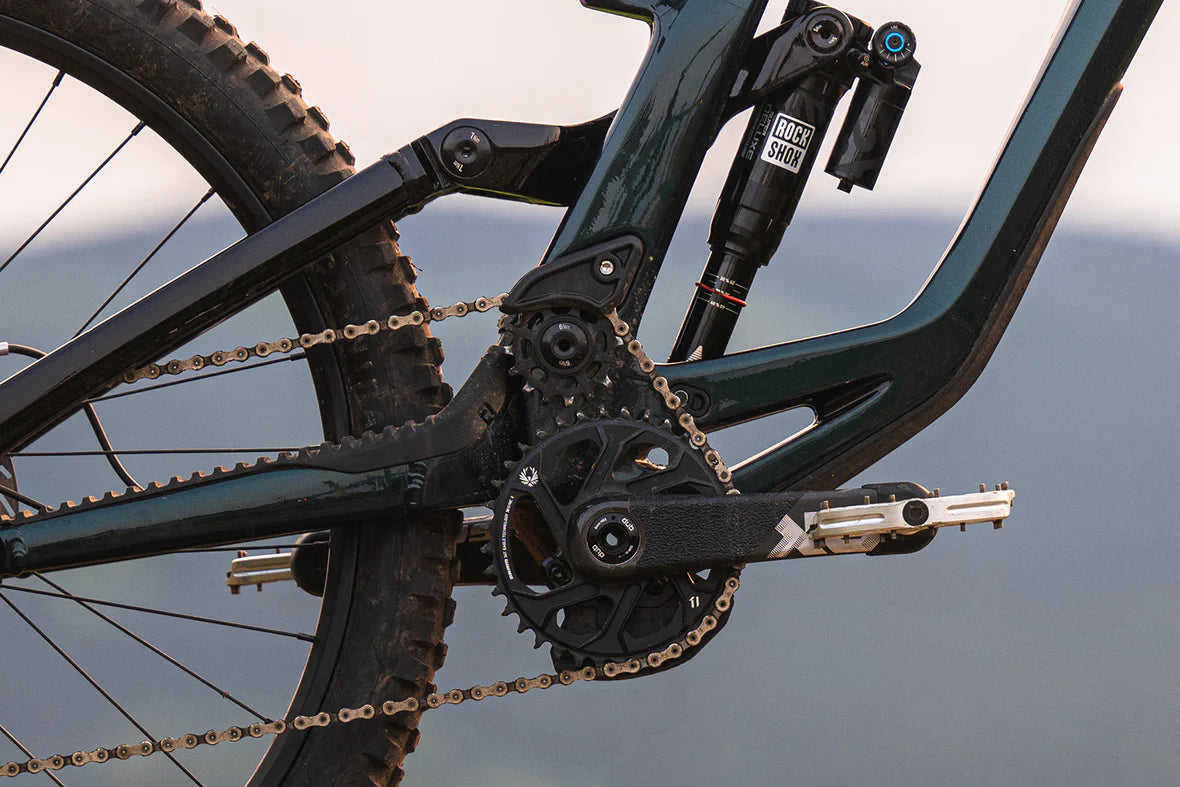

High Pivot LTS
High Pivot LTS delivers the utmost controlled and inspiring suspension performance making riders faster anywhere. Geometry and kinematics are designed and tailored to increase stability at any speed and maximize performance by eliminating pedal kickback and having an incredible amount of control under heavy braking.
Frame
Frame - Fury Carbon MX Frame, 200mm Travel, 12x148mm Rear Thru-Axle, 29" Wheel Ready
Sizes available - MD, LG, XL
Fork - RockShox BoXXer, 200mm, Rush RC, DebonAir+, 20x110mm Boost, 52mm Offset
Rear shock - X-Fusion H3C DH Coil, 225x75mm Trunnion (Spring Rate: M - 500 Lbs/Inch, L/XL- 550 Lbs/Inch)
Wheel size - Mullet
Wheels
Rims - WTB ST i30 TCS 2.0, 32h, Tubeless Ready
Front hub - Formula, 20x110mm Boost
Rear hub - Formula, 12x148mm, HG Freehub Body
Front tire - Continental Kryptotal Fr, 29x2.4", DH SuperSoft
Rear tire - Continental Kryptotal Re, 27.5x2.4", DH SuperSoft
Drivetrain
Rear derailleur - SRAM X7
Shifters - SRAM X5, 9-Speed
Rear cogs - SRAM PG-950, 11-28T
Chain - KMC X9, 9-Speed
Crank - Prowheel Charm DH, 34T
Bottom bracket - Prowheel BSA, 83mm
Cockpit
Handlebar - GT Alloy Riser Bar, 30mm Rise, 780mm, 5° Up, 8° Back (Width: M/L/XL - 80cm)
Stem - Truvativ Descendant DH
Grips - GT Mushroom
Headset - FSA Orbit 1.5"
Seatpost - GT Alloy, 31.6mm (M/L/XL - 300mm)
Saddle - GT Scoop Flat
Brakes
Brakes - TRP Slate EVO T4, 203/203mm Rotors
