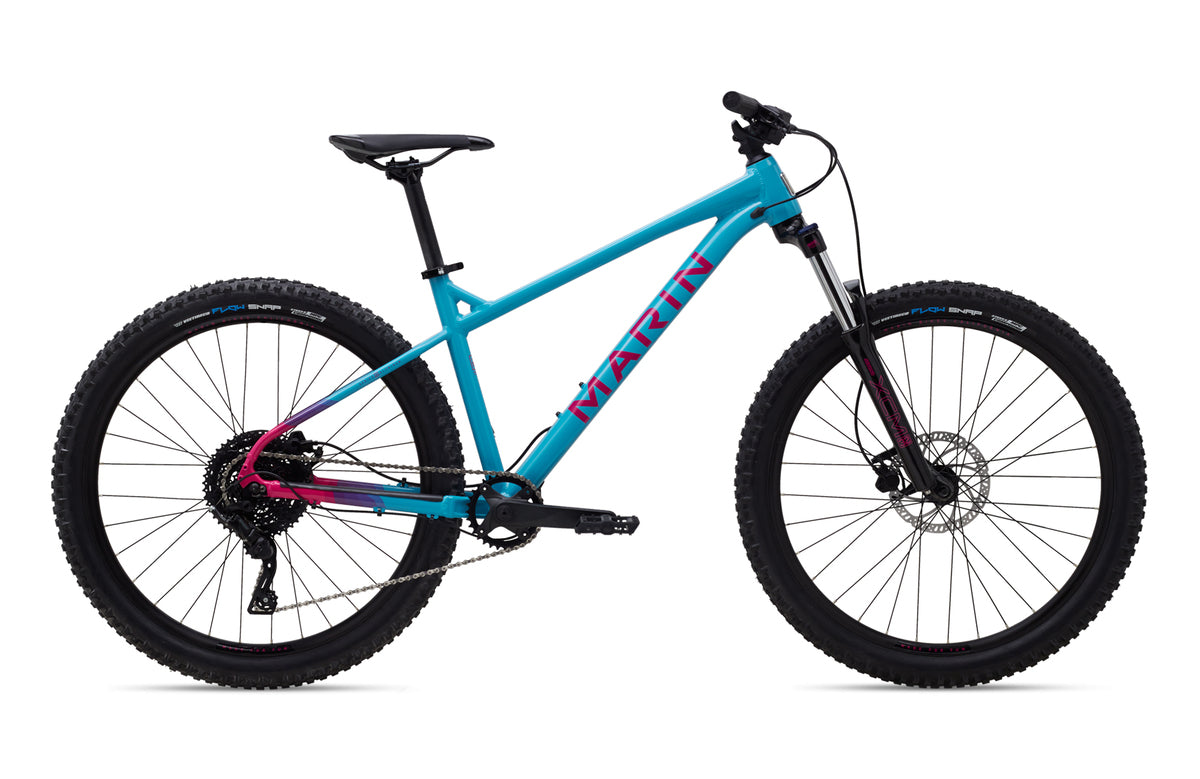

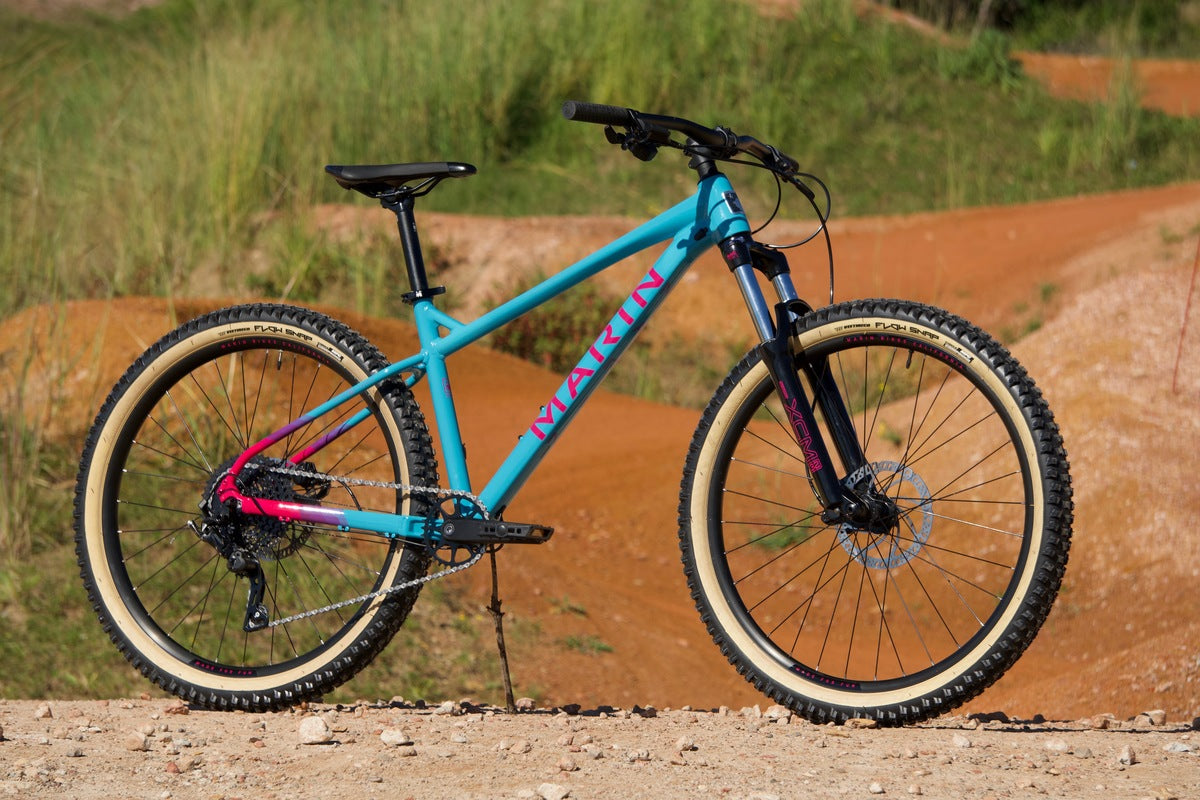

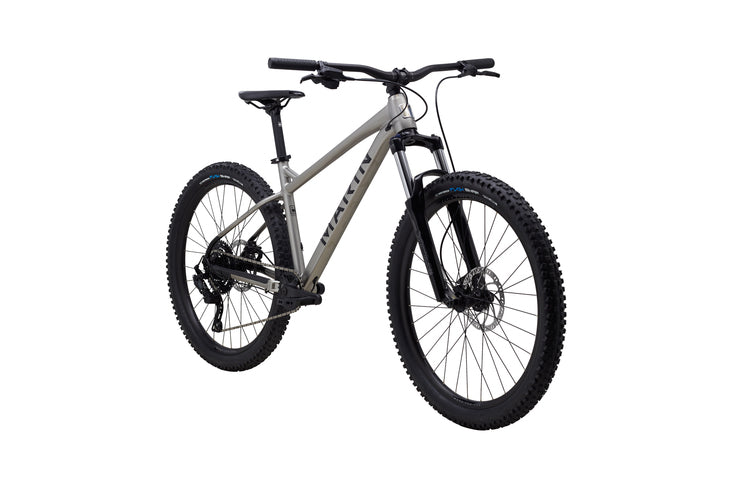

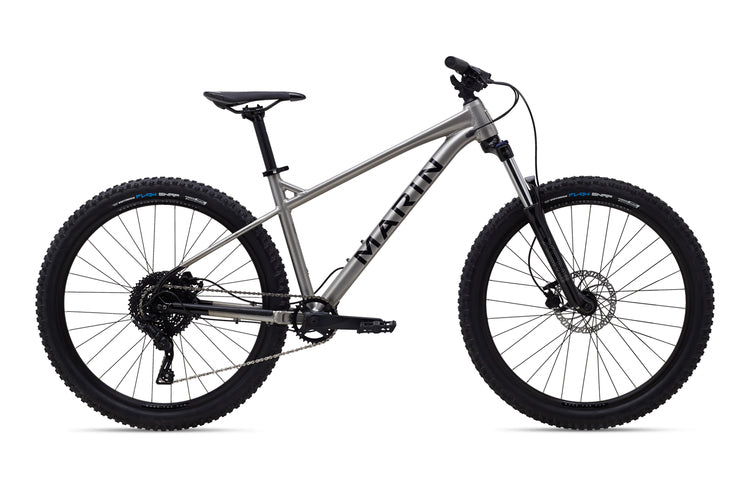

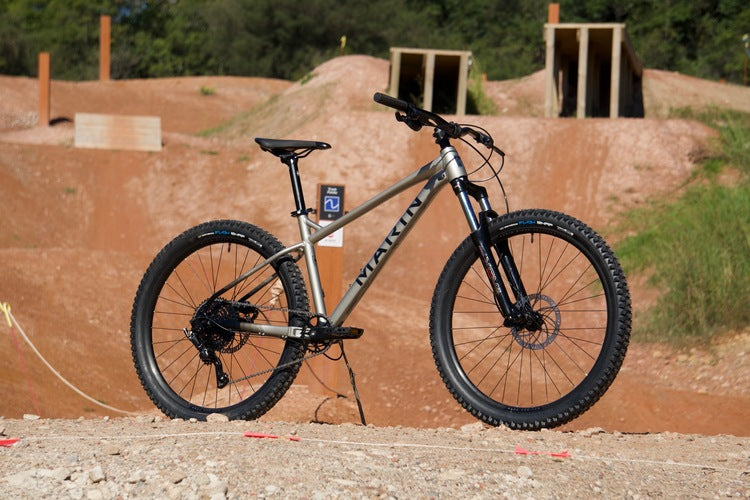

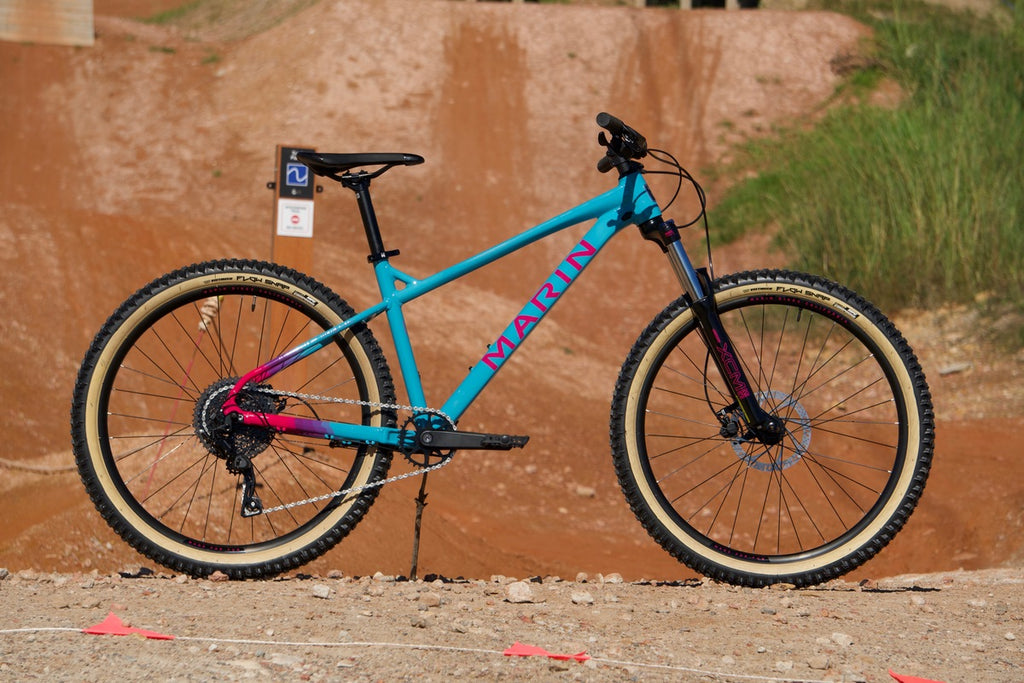

The San Quentin is for the aggressive hardtail trail rider looking for a blend between singletrack capabilities and extended air time.
-

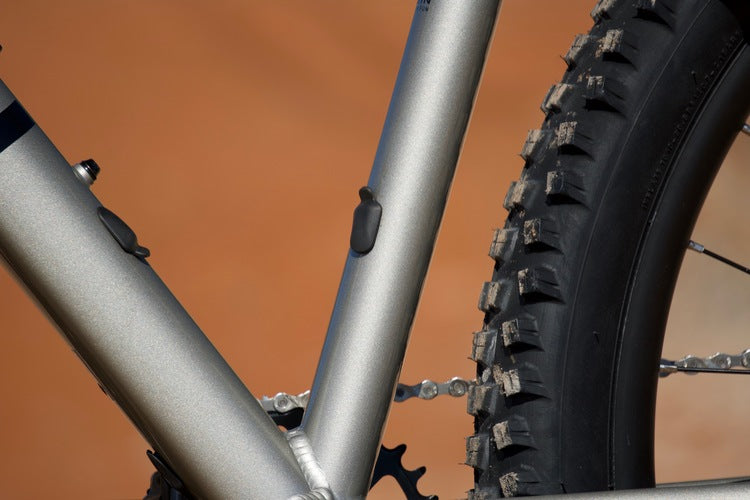

FRAME Series 2 6061 Aluminum, Double Butted Frame, Internal Cable Routing, 141mm Open Dropout, 73mm Threaded BB
-

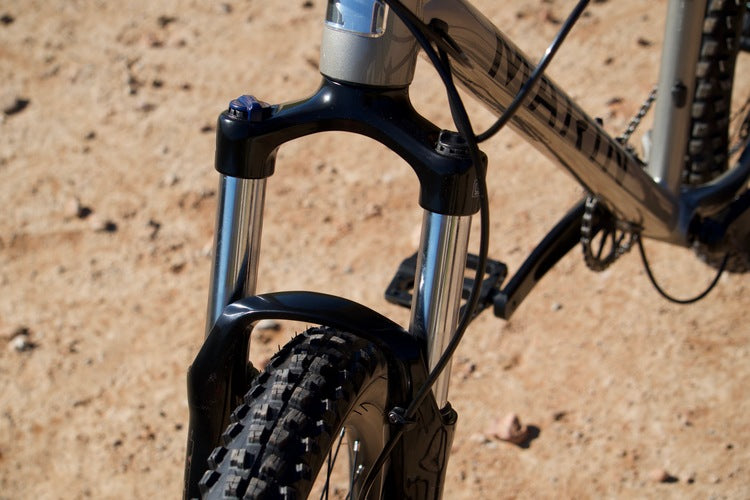

FORK SR Suntour XCM32 Boost 15x110mm Spacing, 120mm Travel, Lock Out, 27.5", Bolt-On Thru-Axle
-
RIMS Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specifc, 32H Tubeless Compatible
-
HUB REAR Forged Alloy, 141mm Width, Disc, 32H, Shimano Standard Freehub Body
-
HUB FRONT Forged Alloy, 110x15mm, Disc, 32H SPOKES 14g Black Stainless Steel
-

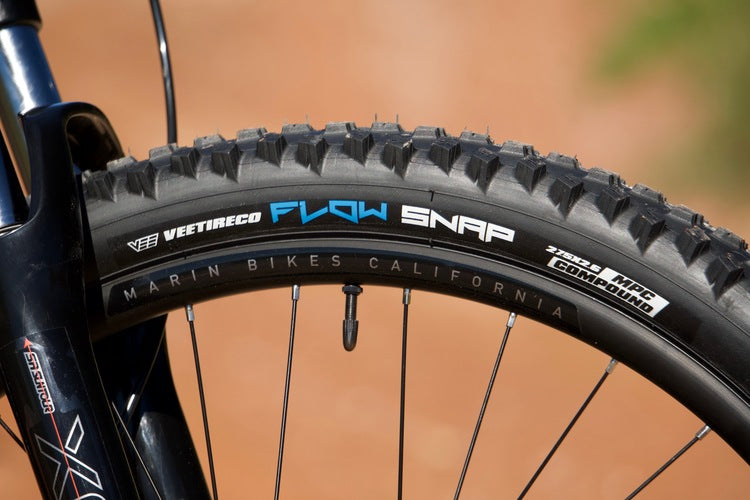

TYRES Vee Tire Co, Flow Snap, 27.5x2.6", MPC Compound, Wire Bead
-

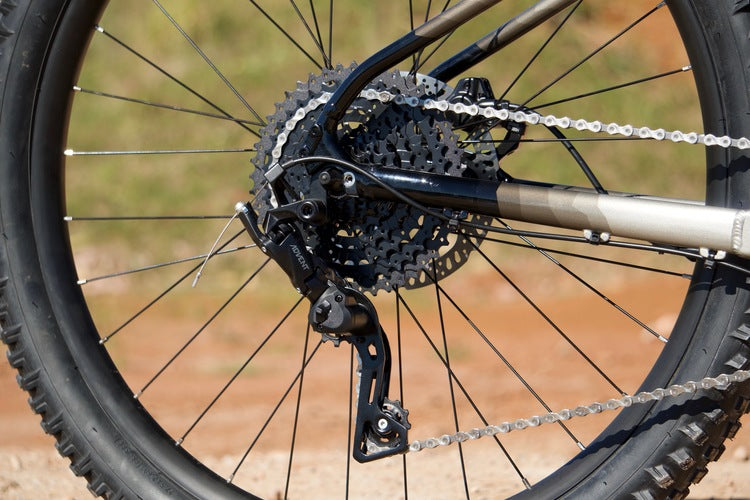

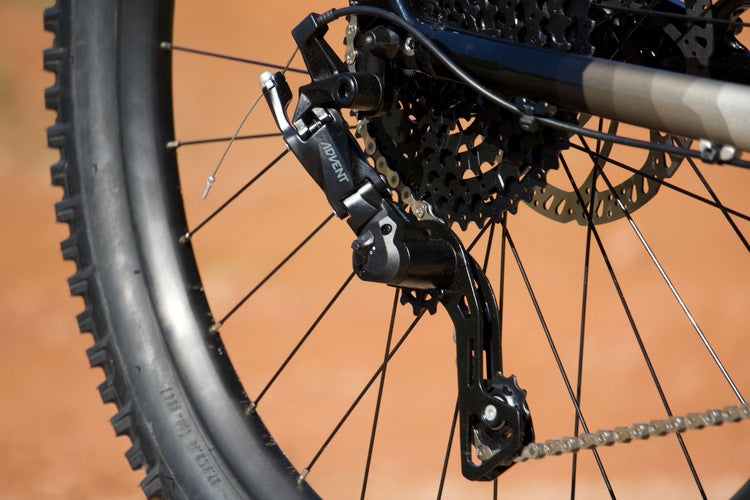

DERAILLEUR REAR MicroShift RD-M9195M, 9 Speed, With Clutch
-
SHIFT LEVER MicroShift SL-M9195-R, 1x9 with Bearings
-
CRANKSET Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
-
BOTTOM BRACKET Sealed Cartridge Bearing, Square Taper
-
CHAIN KMC X-9 CASSETTE Sunrace, 9 Speed, 11-46T
-
BRAKES FRONT Tektro M275 Hydraulic Disc Brake, 180mm Rotor
-

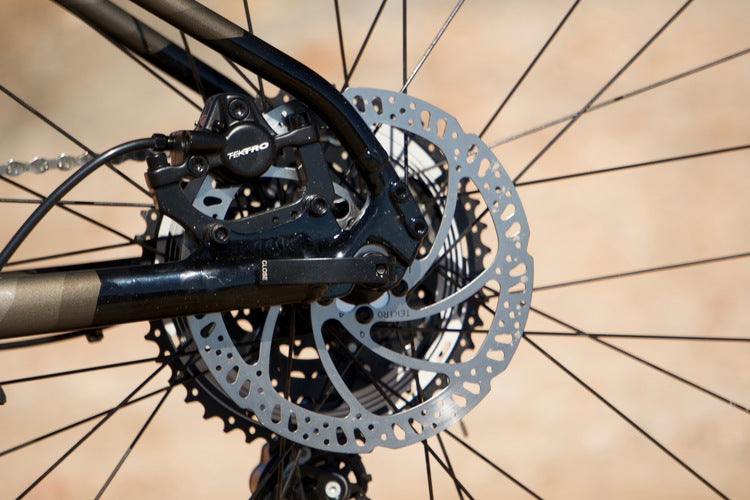

BRAKES REAR Tektro M275 Hydraulic Disc Brake, 180mm Rotor
-

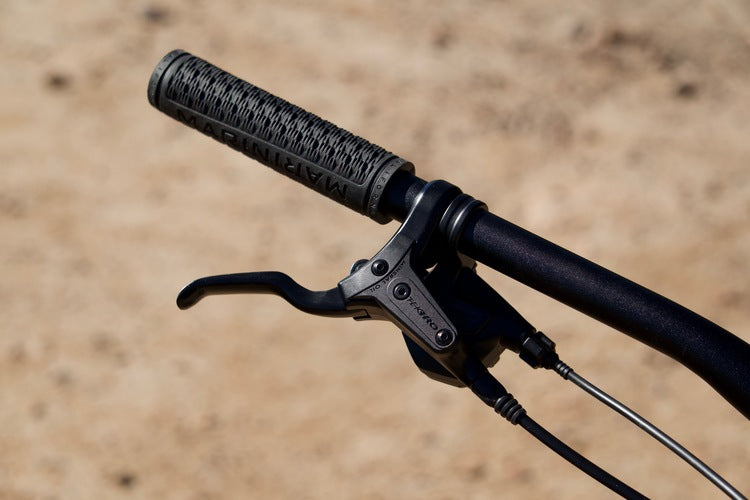

BRAKE LEVERS Tektro M275 Hydraulic Disc HANDLEBAR Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
-
STEM Marin 3D Forged Alloy, 45mm
-
GRIPS Marin MTN, Closed End
-

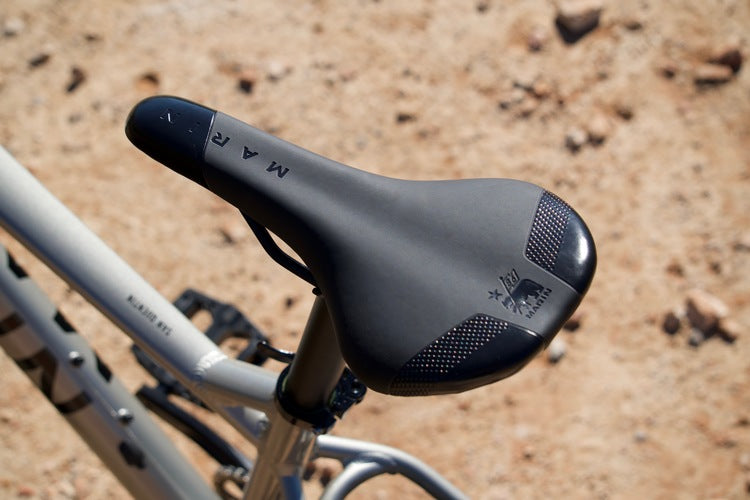

HEADSET FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” SEATPOST Marin Alloy, 30.9mm SADDLE Marin Speed Concept
-
PEDALS Nylon Platform
